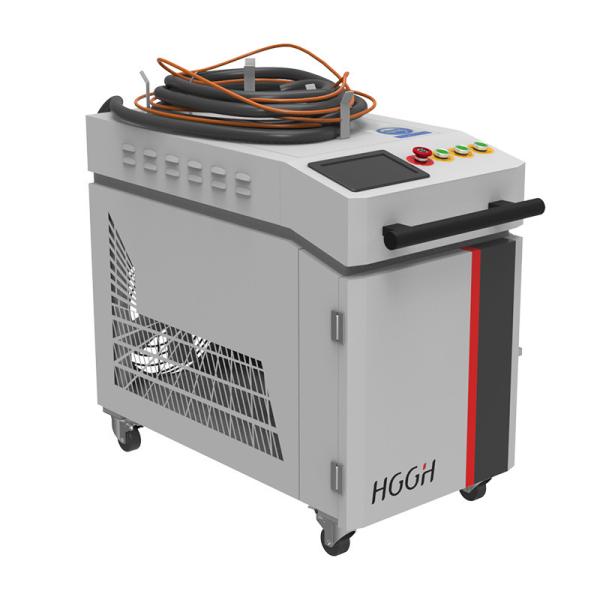

1000W 1500W 2000W Handheld Small Fiber Laser Welding Machine New Condition for Metal Stainless Steel Rust Removal Laser Welder

Product Categories

Wuhan Hgguanghe Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Cooling Type : Air Cooling

condition : New

Applicable Material : Stainless Steel, Metal, Aluminum, Carbon Steel, Steel

Laser Type : Fiber Laser

Output Power : 1000W-2000W

usage : Cutting and welding

Welding Mode : Continuous/modulated pulse.

Welding Speed : 10-30mm/s

Place of Origin : Hubei, China

Wavelength : 1070nm

focal spot diameter : 0.1-2.0mm

warranty : 1 Year

weight (kg) : 110

key selling points : Easy to Operate

Product name : Handheld Laser Welding Machine

Application : Metal Welding Products

Cooling System : Air Cooling System

Advantage : Welding Cleaning Cutting

Laser wavelength : 1070nm

Contact Now

Parameter	Specification
Model	GH-D
Output Power	1000W / 1500W / 2000W
Operating Mode	Continuous Output / Pulsed Output / Custom Pulse Mode
Output Power Adjustment Range	10–100%
Laser Wavelength (nm)	1070
Power Stability	< ±2% (Ambient Temperature: 10–50°C)
Fiber Length	10 m
Indicator Laser Wavelength (nm)	1070 nm
Welding Head Type	Wire-Feed Handheld Welding Head
Chiller Model	HG-1500L
Cooling & Shielding Gas	Inert Gas
Operating Temperature Range	10–50°C
Power Requirements	220V ±5%, 50Hz
Power Consumption	≤ 8 kW (Excluding Chiller)
Ambient Temperature (℃)	10–50
Ambient Humidity (%)	< 95% RH
Total Weight	110 kg
Cabinet Dimensions (mm)	1060 × 500 × 900
